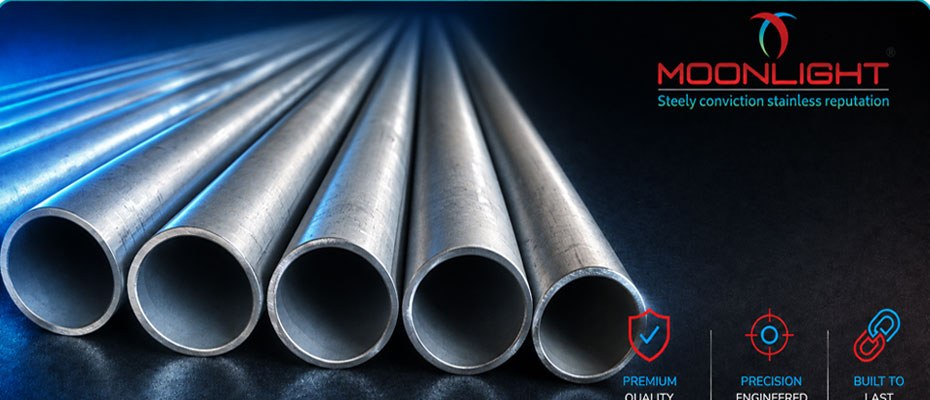

Stainless Steel ERW Pipes and Tubes Manufacturer in India
MLTI Private Limited (Moonlight Tube Industries) has manufactured and exported stainless steel ERW pipes and tubes based in Gujarat since 2008, and the plant now turns out roughly 8,000 MT a year. ERW stands for Electric Resistance Welded: a strip is cold-formed into a cylinder, and the abutting edges are forged together by resistance heating, without filler metal. Welded pipe leaves the works to ASTM A312 / ASME SA-312, while welded tube is certified to ASTM A249, A269, or A554 by service. Grades 304, 304L, 310, 316, 316L, 316Ti, 321, 321H, 347, 347H, and 904L carry most of the schedule, each with matching UNS, EN and JIS designations.
SA-312 sets minima of 515 MPa tensile and 205 MPa yield strength, with minimum values of 485 MPa tensile strength and 170 MPa yield strength for the low-carbon grades. As an SS ERW pipe manufacturer in India, we produce 1/8 inch to 10 inch NB pipe in the four ASME B36.19M schedules plus an intermediate 20S wall series, tube from 12.7 mm to 101.6 mm OD, and square and rectangular sections beside them. Sugar mills, chemical plants, dairies, water treatment works and fabricators place the bulk of orders. In-house eddy current, hydrostatic and PMI testing backs every EN 10204 3.1 certificate. We hold ISO 14001 and 45001 certifications along with BIS, EIL, IBR, and PED 2014/68/EU approvals.
Specifications of Stainless Steel ERW Pipes and Tubes
Standards, grades, dimensions and supply conditions for our stainless steel ERW pipe specification are collected in the table below.
| Parameter | Value |
|---|---|
| Applicable Standards | ASTM A312: Seamless, welded and heavily cold worked austenitic stainless steel pipes for high-temperature and general corrosive service. ASTM A249: Welded austenitic stainless steel tubing for general corrosion-resisting service. ASTM A554: Welded stainless tubing for ornamental or mechanical uses. |
| Grades | 304, 304L, 310, 316, 316L, 316Ti, 321, 321H, 347, 347H, 904L |
| Dimensional standard | ASME B36.19M (pipe) |
| Manufacturing process | ERW: formed from coil, continuous resistance weld, bead rolled, annealed in line |
| Pipe size | 1/8 inch NB (6 mm) to 10 inch NB (250 mm) |
| Schedule | SCH 5S, SCH 10S, SCH 20S, SCH 40S, SCH 80S |
| Pipe wall thickness | 1.24 mm to 12.70 mm, by bore and schedule |
| Tube outside diameter | 12.7 mm (1/2 inch) to 101.6 mm (4 inch) |
| Tube gauge | 10 SWG (3.25 mm) to 19 SWG (1.02 mm) |
| Section profile | Round, square, rectangular |
| Square / rectangular size | 12 x 12 mm to 100 x 100 mm; 13 x 25 mm to 100 x 50 mm, wall 1.0 mm to 6.0 mm |
| Length | Up to 24 m round; up to 12 m square and rectangular; cut lengths to order |
| End type | Plain end; bevelled to order |
| Finish | Mill finish, pickled and passivated |
Stainless Steel ERW Pipe and Tubes Grades
Eleven austenitic grades cover most ERW production, separated by carbon level, molybdenum content and stabiliser.
Stainless Steel ERW Pipe and Tube Forms
Stainless steel ERW pipe and tube are available in a range of forms to suit different structural and service requirements.
Stainless Steel ERW Pipe and Tube Sizes
Our SS ERW pipe size chart and schedule chart cover 1/8 inch to 10 inch NB; tube dimensions follow in the tables below.
ERW Pipe Sizes
| NB (mm) | NB (inch) | OD (mm) | SCH 5S (mm) | SCH 10S (mm) | SCH 20S (mm) | SCH 40S (mm) | SCH 80S (mm) |
|---|---|---|---|---|---|---|---|
| 6 | 1/8 | 10.3 | 1.24 | 1.24 | 1.50 | 1.73 | 2.41 |
| 8 | 1/4 | 13.7 | 1.24 | 1.65 | 2.00 | 2.24 | 3.02 |
| 10 | 3/8 | 17.1 | 1.24 | 1.65 | 2.00 | 2.31 | 3.20 |
| 15 | 1/2 | 21.34 | 1.65 | 2.11 | 2.30 | 2.77 | 3.75 |
| 20 | 3/4 | 26.7 | 1.65 | 2.11 | 2.55 | 2.87 | 3.91 |
| 25 | 1 | 33.4 | 1.65 | 2.77 | 3.00 | 3.38 | 4.55 |
| 32 | 1 1/4 | 42.2 | 1.65 | 2.77 | 3.00 | 3.56 | 4.85 |
| 40 | 1 1/2 | 48.3 | 1.65 | 2.77 | 3.00 | 3.68 | 5.08 |
| 50 | 2 | 60.3 | 1.65 | 2.77 | 3.00 | 3.91 | 5.54 |
| 65 | 2 1/2 | 73.0 | 2.11 | 3.05 | 4.00 | 5.16 | 7.01 |
| 80 | 3 | 88.9 | 2.11 | 3.05 | 4.00 | 5.49 | 7.62 |
| 100 | 4 | 114.3 | 2.11 | 3.05 | 4.50 | 6.02 | 8.56 |
| 125 | 5 | 141.3 | 2.77 | 3.40 | 5.00 | 6.55 | 9.53 |
| 150 | 6 | 168.3 | 2.77 | 3.40 | 6.35 | 7.11 | 10.97 |
| 200 | 8 | 219.1 | 2.77 | 3.76 | 6.35 | 8.18 | 12.70 |
| 250 | 10 | 273.1 | 3.40 | 4.19 | 6.35 | 9.27 | 12.70 |
ERW Tube Sizes
SS ERW tube sizes range from 12.7 mm to 101.6 mm across six SWG wall options, as shown below.
| Size | OD (mm) | 10 SWG – 3.25 mm Weight/MTR | 12 SWG – 2.64 mm Weight/MTR | 14 SWG – 2.03 mm Weight/MTR | 16 SWG – 1.63 mm Weight/MTR | 18 SWG – 1.22 mm Weight/MTR | 19 SWG – 1.02 mm Weight/MTR |
|---|---|---|---|---|---|---|---|
| 1/2" | 12.7 | 0.75 | 0.65 | 0.55 | 0.45 | 0.34 | 0.29 |
| 5/8" | 15.875 | 1.01 | 0.86 | 0.72 | 0.58 | 0.44 | 0.37 |
| 3/4" | 19.05 | 1.26 | 1.06 | 0.88 | 0.71 | 0.53 | 0.45 |
| 1" | 25.4 | 1.76 | 1.47 | 1.21 | 0.97 | 0.72 | 0.61 |
| 1 1/4" | 31.75 | 2.27 | 1.88 | 1.54 | 1.23 | 0.91 | 0.76 |
| 1 1/2" | 38.1 | 2.77 | 2.29 | 1.88 | 1.49 | 1.10 | 0.92 |
| 2" | 50.8 | 3.78 | 3.11 | 2.54 | 2.01 | 1.48 | 1.24 |
| 2 1/2" | 63.5 | 4.79 | 3.93 | 3.20 | 2.53 | 1.85 | 1.55 |
| 3" | 76.2 | 5.79 | 4.75 | 3.86 | 3.05 | 2.23 | 1.87 |
| 3 1/2" | 88.9 | 6.80 | 5.57 | 4.52 | 3.57 | 2.61 | 2.18 |
| 4" | 101.6 | 7.81 | 6.39 | 5.18 | 4.09 | 2.99 | 2.50 |
Stainless Steel ERW Pipe and Tubes Weight Chart
Rates are struck per kilogram, so mass per metre converts a size into a price. The SS ERW pipe weight chart appears in the table below.
| NB (mm) | NB (inch) | OD (mm) | SCH 5S (kg/m) | SCH 10S (kg/m) | SCH 20S (kg/m) | SCH 40S (kg/m) | SCH 80S (kg/m) |
|---|---|---|---|---|---|---|---|
| 6 | 1/8 | 10.3 | 0.28 | 0.28 | 0.33 | 0.37 | 0.47 |
| 8 | 1/4 | 13.7 | 0.39 | 0.49 | 0.58 | 0.63 | 0.80 |
| 10 | 3/8 | 17.1 | 0.49 | 0.63 | 0.74 | 0.85 | 1.10 |
| 15 | 1/2 | 21.34 | 0.80 | 1.00 | 1.08 | 1.27 | 1.62 |
| 20 | 3/4 | 26.7 | 1.03 | 1.28 | 1.52 | 1.68 | 2.20 |
| 25 | 1 | 33.4 | 1.30 | 2.09 | 1.94 | 2.50 | 3.24 |
| 32 | 1 1/4 | 42.2 | 1.65 | 2.70 | 2.90 | 3.38 | 4.47 |
| 40 | 1 1/2 | 48.3 | 1.91 | 3.11 | 3.35 | 4.05 | 5.41 |
| 50 | 2 | 60.3 | 2.40 | 3.93 | 4.24 | 5.44 | 7.48 |
| 65 | 2 1/2 | 73.0 | 3.69 | 5.26 | 6.81 | 8.63 | 11.40 |
| 80 | 3 | 88.9 | 4.51 | 6.45 | 8.37 | 11.30 | 15.20 |
| 100 | 4 | 114.3 | 5.84 | 8.36 | 12.18 | 16.07 | 22.30 |
| 125 | 5 | 141.3 | 9.47 | 11.57 | 16.81 | 21.80 | 31.97 |
| 150 | 6 | 168.3 | 11.32 | 13.84 | 25.36 | 28.30 | 42.70 |
| 200 | 8 | 219.1 | 14.79 | 19.96 | 33.31 | 42.60 | 64.60 |
| 250 | 10 | 273.1 | 22.63 | 27.78 | 41.77 | 60.50 | 96.00 |
Stainless Steel ERW Pipe and Tube Industrial Applications
Five sectors take most of the output, each specifying SS welded pipe or tube against a different corrosion or loading condition.
Sugar and Distillery Plants
Juice heaters, evaporator tube and molasses transfer lines run hot, acidic and abrasive through a crushing season. Grade 304 ERW pipe holds that combination without the scaling and lining that carbon steel needs.
Chemical and Petrochemical Processing
Dosing lines, product transfer headers, and A249 heat exchanger tubes are specified in 316 and 316L. Molybdenum keeps the passive film intact where chlorides or mildly reducing media would pit plain 18-8 material.
Food, Dairy and Pharmaceutical Processing
Purified water loops, CIP circuits and milk transfer runs take 316L welded tube with a pickled and passivated bore. A bead rolled seam leaves no internal crevice for residue to lodge in.

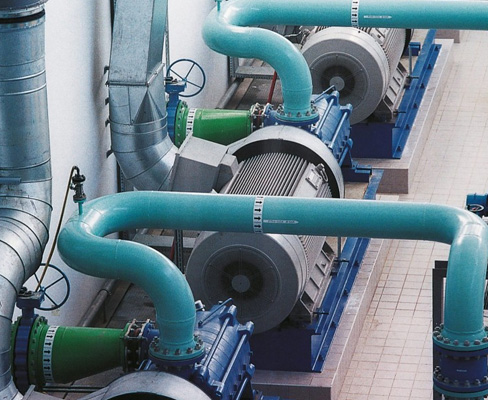

Water Treatment and HVAC Systems
Municipal treatment headers, building risers and condenser water circuits use stainless steel welded pipe in grade 304, moving to 316 on chlorinated supply. Grade selection depends on the water chemistry, chloride level and operating conditions. Grade selection depends on the water chemistry, chloride level and operating conditions.

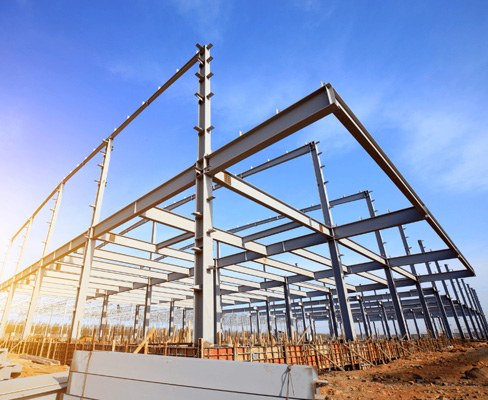

Structural and Engineering Fabrication
Square and rectangular A554 tube goes into handrails, platform frames, machine bases and architectural work. Fabricators weld, polish and bend it without the joint opening, since the seam anneals with the parent metal.
Shipping and Packaging of ERW SS Pipes and Tubes
Pipes and tubes undergo specialised packaging, marking, and certification to ensure secure, compliant transport via sea or road to global destinations.
- Pipes and tubes are bundled by grade, size and schedule or gauge.
- Timber cases or crates protect sea freight; strapped bundles serve road despatch.
- Plastic caps close pipe ends, with PVC sleeving on polished tube.
- Export cargo moves FOB or CFR to Brazil, Vietnam, Turkey and Europe.
Why Choose MLTI Private Limited?
Buyers return to Moonlight Tubes for certified material, approved grades and stock that ships on schedule. Every order is backed by documented quality, a wide size range and delivery commitments we hold to.
Quality Certification
01
IBR & EIL Approved
02
Why
Choose Us
03
Wide Range of Grades & Sizes
04
Timely Global Delivery
Stainless Steel ERW Pipes and Tubes FAQs
Stainless steel ERW pipe is a welded austenitic pipe formed from a strip and closed by a longitudinal electric resistance seam, produced without filler metal and certified under ASTM A312.
ERW pipe serves water, process and structural lines at a lower rate per metre; seamless is reserved for extreme pressure and heavy cyclic duty.
SS ERW pipe is stocked in grades 304, 304L, 310, 316, 316L, 316 Ti, 321, 321H, 347, 347H, 904L and other series analyses made against order.
ASTM A312 / ASME SA-312 covers welded austenitic stainless steel pipe. Welded tube follows ASTM A249 for boiler and heat exchanger duty, A269 for general service and A554 for mechanical sections.
Stainless steel ERW pipe is supplied in lengths up to 24 metres, cut to order; square and rectangular tube runs to a maximum of 12 metres.
SS ERW pipe falls under HSN heading 7306, with welded circular stainless sections classified under 7306 40 and square or rectangular hollow sections under 7306 61.
Stainless steel ERW pipe is suited to water distribution and HVAC condenser circuits. Grade 304 serves closed and treated loops, and 316 is specified where chlorinated or brackish water raises the pitting risk.
