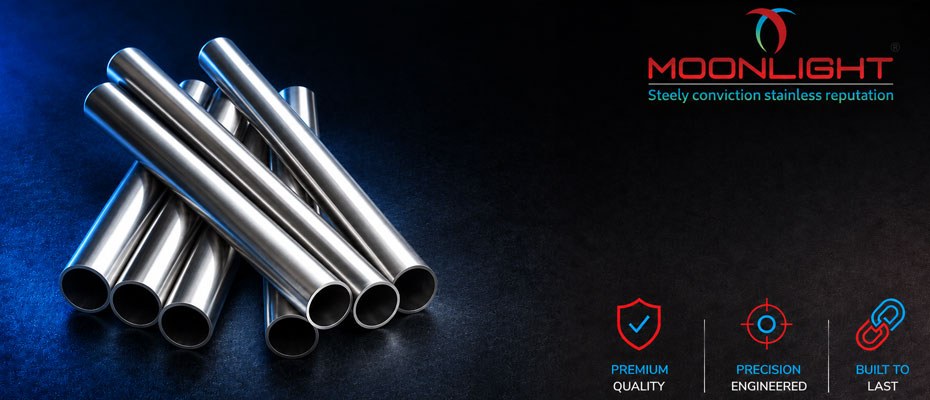

MLTI Private Limited (Moonlight Tube Industries) is a 316 stainless steel pipe manufacturer, supplier and exporter based in Gujarat since 2008, with an annual capacity of nearly 8,000 MT. We produce this 316 steel pipe to ASTM A312 / ASME SA-312 in grade TP316, registered as UNS S31600.
Molybdenum at 2.00 to 3.00% separates type 316 stainless steel pipe from the plain 18/8 grades because a 316 stainless pipe resists chloride pitting where a chromium-nickel film alone gives way. Around it sit 16.0 to 18.0% chromium and 10.0 to 14.0% nickel. Carbon is capped at 0.08%. SA-312 is certified to have a minimum of 515 MPa tensile strength, 205 MPa yield strength and 35% elongation.
Our rolling programme for 316 SS pipe covers 1/8" NB through 10" NB in SCH 5S, 10S, 20S, 40S and 80S, dimensioned to ASME B36.19, in lengths reaching 24 ft. Our production includes 316 stainless steel seamless pipes, which are pierced from solid billets to carry extreme pressure without seams, and 316 stainless steel welded pipes, which are roll-formed from flat strips and seam-fused, including high-frequency ERW lines forged under electrical pressure without filler metal, a process this mill was built around. As a 316 stainless steel pipe manufacturer, we supply to the chemical, pharmaceutical, food processing, sugar and oil & gas industries. Every length leaves solution annealed at 1040°C minimum and hydrostatically tested to A999/A999M, on an EN 10204 3.1 certificate. We hold ISO 14001 and 45001 certifications with BIS, EIL, IBR and PED 2014/68/EU approvals.
This consolidated table covers full SS 316 pipe specifications, including standard, size envelope, and manufacturing route below.
| Parameter | Value |
|---|---|
| Applicable Standard | ASTM A312/ ASME SA-312: Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes |
| Dimensional standard | ASME B36.19 |
| Size range | 1/8" NB to 10" NB |
| Schedule | SCH 5S, SCH 10S, SCH 20S, SCH 40S, SCH 80S |
| Wall thickness | 1.24 mm to 12.70 mm, by bore and schedule |
| Length | Up to 24 ft; single random, double random and cut lengths |
| Manufacturing form | Seamless, welded (ERW) |
| Section profile | Round, Square and Rectangular |
| Finish | Mill finish; solution annealed and pickled |
| End type | Plain end; bevelled to order |
Molybdenum, chromium and nickel together fix how grade 316 behaves in chloride service, and the carbon ceiling fixes how it behaves after welding. Element limits for UNS S31600 pipe under SA-312 appear below.
| Element | Composition (%) |
|---|---|
| Carbon (C) | 0.08 max |
| Manganese (Mn) | 2.00 max |
| Phosphorus (P) | 0.045 max |
| Sulphur (S) | 0.030 max |
| Silicon (Si) | 1.00 max |
| Chromium (Cr) | 16.0 to 18.0 |
| Nickel (Ni) | 10.0 to 14.0 |
| Molybdenum (Mo) | 2.00 to 3.00 |
| Iron (Fe) | Balance |
Molybdenum works on the passive film. Chloride ions attack that film at weak points and start a pit; molybdenum stabilises it and repairs the breakdown. Calculated from the SA-312 limits, the pitting resistance equivalent number (PREN = %Cr + 3.3 × %Mo) runs between about 23 and 28. SA-312 sets no nitrogen requirement for S31600, so the nitrogen term drops out.
The mechanical properties of SS 316 Pipe as per ASME SA-312 requirements are as follows.
| Property | Requirement |
|---|---|
| Tensile strength, min | 515 MPa (75 ksi) |
| Yield strength, min | 205 MPa (30 ksi) |
| Elongation in 50 mm, min, longitudinal | 35% |
| Elongation in 50 mm, min, transverse | 25% |
Wall thickness doesn't reduce the certified minima, so SCH 5S and SCH 80S both answer to 515 MPa.
Orders on a European, Japanese or Chinese specification need the cross-reference before release. Designations for ASTM 316 stainless steel pipe are set out below.
| Standard | Designation |
|---|---|
| UNS (USA) | S31600 |
| EN / Werkstoff (Europe) | 1.4401 / X5CrNiMo17-12-2 |
| JIS (Japan) | SUS 316 TP |
| GB (China) | 06Cr17Ni12Mo2 |
| IS (India) | X04Cr17Ni12Mo2 |
2 construction processes reach the same SS 316 chemistry. The choice turns on bore, wall and pressure duty, not the alloy. We also provide 3 section profiles, namely round, square, and rectangular.
316 stainless steel seamless pipe begins as a solid billet, pierced over a mandrel and drawn to size. Nothing runs along its length to open under cyclic pressure, so seamless is specified where cyclic pressure duty governs.
Welded 316 pipe is formed from gauged strip and fused using electric resistance welding (ERW) without filler metal. This efficient forging process delivers excellent wall consistency, making it our highest tonnage route and highly cost-effective past four inches.
Round 316 pipe is the standard circular section used for pressure and fluid service. Its uniform profile supports efficient flow, straightforward joining, and compatibility with conventional piping components across industrial applications.
Square
Square 316 pipe has four equal sides and is mainly selected for structural and fabrication applications. Its flat surfaces simplify connections, supports, frames, and assemblies where consistent geometry and corrosion resistance are required.
Rectangular
Rectangular 316 pipe has unequal side dimensions, providing greater flexibility for structural layouts and fabricated assemblies. It suits applications requiring flat faces, controlled section dimensions, and stainless steel corrosion resistance.
Our envelope for 316 stainless steel round pipe spans sixteen bores and five schedules. The SS 316 pipe size chart below gives 316 stainless steel pipe dimensions to ASME B36.19, outside diameter and nominal wall alike.
| Nominal Bore (mm) | Nominal Bore (INCH) | Outside Diameter (mm) | Sch-5S Thickness (mm) | Sch-10S Thickness (mm) | Sch-20S Thickness (mm) | Sch-40S Thickness (mm) | Sch-80S Thickness (mm) |
|---|---|---|---|---|---|---|---|
| 6 | 1/8 | 10.30 | - | 1.24 | 1.50 | 1.73 | 2.41 |
| 8 | 1/4 | 13.70 | - | 1.65 | 2.00 | 2.24 | 3.02 |
| 10 | 3/8 | 17.10 | 1.24 | 1.65 | 2.00 | 2.31 | 3.2 |
| 15 | 1/2 | 21.34 | 1.65 | 2.11 | 2.30 | 2.77 | 3.75 |
| 20 | 3/4 | 26.70 | 1.65 | 2.11 | 2.55 | 2.87 | 3.91 |
| 25 | 1 | 33.40 | 1.65 | 2.77 | 3.00 | 3.38 | 4.55 |
| 32 | 1 1/4 | 42.20 | 1.65 | 2.77 | 3.00 | 3.56 | 4.85 |
| 40 | 1 1/2 | 48.30 | 1.65 | 2.77 | 3.00 | 3.68 | 5.08 |
| 50 | 2 | 60.30 | 1.65 | 2.77 | 3.00 | 3.91 | 5.54 |
| 65 | 2 1/2 | 73 | 2.11 | 3.05 | 4.00 | 5.16 | 7.01 |
| 80 | 3 | 88.9 | 2.11 | 3.05 | 4.00 | 5.49 | 7.62 |
| 100 | 4 | 114.3 | 2.11 | 3.05 | 4.50 | 6.02 | 8.56 |
| 125 | 5 | 141.3 | 2.77 | 3.4 | 5.00 | 6.55 | 9.53 |
| 150 | 6 | 168.3 | 2.77 | 3.4 | 6.35 | 7.11 | 10.97 |
| 200 | 8 | 219.1 | 2.77 | 3.76 | 6.35 | 8.18 | 12.7 |
| 250 | 10 | 273.1 | 3.4 | 4.19 | 6.35 | 9.27 | 12.7 |
Schedule fixes wall, not bore, 316 SS pipe dimensions shift with both. The same number thickens as NB climbs: SCH 40S measures 2.77 mm at 1/2 inch against 8.18 mm at 8 inches. B36.19 defines no SCH 5S wall at 3/8" NB.
Stock runs in 3 m and 6 m, with 20 ft for imperial orders. Cutting happens in house, and we'll hold any length to 24 ft.
This SS 316 pipe weight chart lists weights by nominal bore and schedule, helping estimate material quantities, handling needs, and overall piping weight.
| Nominal Bore (mm) | Nominal Bore (INCH) | Sch-5S Weight (Kg/mt) | Sch-10S Weight (Kg/mt) | Sch-20S Weight (Kg/mt) | Sch-40S Weight (Kg/mt) | Sch-80S Weight (Kg/mt) |
|---|---|---|---|---|---|---|
| 6 | 1/8 | 0.276 | 0.28 | 0.33 | 0.37 | 0.47 |
| 8 | 1/4 | 0.39 | 0.49 | 0.58 | 0.631 | 0.8 |
| 10 | 3/8 | 0.49 | 0.63 | 0.74 | 0.845 | 1.1 |
| 15 | 1/2 | 0.8 | 1 | 1.08 | 1.27 | 1.62 |
| 20 | 3/4 | 1.03 | 1.28 | 1.52 | 1.68 | 2.2 |
| 25 | 1 | 1.3 | 2.09 | 1.94 | 2.5 | 3.24 |
| 32 | 1 1/4 | 1.65 | 2.7 | 2.90 | 3.38 | 4.47 |
| 40 | 1 1/2 | 1.91 | 3.11 | 3.35 | 4.05 | 5.41 |
| 50 | 2 | 2.4 | 3.93 | 4.24 | 5.44 | 7.48 |
| 65 | 2 1/2 | 3.69 | 5.26 | 6.81 | 8.63 | 11.4 |
| 80 | 3 | 4.51 | 6.45 | 8.37 | 11.3 | 15.2 |
| 100 | 4 | 5.84 | 8.36 | 12.18 | 16.07 | 22.3 |
| 125 | 5 | 9.47 | 11.57 | 16.81 | 21.8 | 31.97 |
| 150 | 6 | 11.32 | 13.84 | 25.36 | 28.3 | 42.7 |
| 200 | 8 | 14.79 | 19.96 | 33.31 | 42.6 | 64.6 |
| 250 | 10 | 22.63 | 27.78 | 41.77 | 60.5 | 96 |
6 sectors take most of what leaves the mill, each for a reason traceable to molybdenum.
Ballast lines, seawater cooling circuits and deck piping run in 316 because chloride would pit an unalloyed austenitic within a season. Stagnant seawater still demands care, so we specify against the flow condition.
Reactor feed headers and acid dosing runs carry sulphuric, phosphoric and acetic media, and molybdenum widens the passive range into reducing conditions that leave grade 304 exposed.
Utility piping and produced-water runs on platforms use 316 wherever the service stays sweet. Sour duty moves to another alloy.
Purified water loops and clean steam lines take 316 pipe on contact duty. A pickled surface holds no residue. Caustic sanitising cycles leave the passive film intact.
Reverse osmosis skids and brine rejection lines combine chloride load with continuous wetting, and grade 316 handles the reject stream on the low-pressure side.
Juice handling, evaporator and syrup lines carry hot, mildly acidic media, and molybdenum holds the passive film where thermal cycling and cleaning cycles work against it.
We package SS 316 pipes securely to protect them during storage, handling, and transportation, while maintaining clear product identification and documentation.
The stainless steel 316 pipe price in India is approximately ₹300–₹550/kg and US$3.35–US$6.15/kg. Nickel and molybdenum both trade daily, so SS 316 pipe prices move week to week. No SS 316 pipe price list holds for long. We quote the price of stainless steel pipe 316 as of the day of enquiry.
Buyers return to Moonlight Tubes for certified material, approved grades and stock that ships on schedule. Every order is backed by documented quality, a wide size range and delivery commitments we hold to.
Wall runs from 1.24 mm to 12.70 mm, fixed by bore and schedule rather than grade. A 2" NB length measures 2.77 mm at SCH 10S and 5.54 mm at SCH 80S.
316 contains 2.00 to 3.00% molybdenum and 304 contains none. That addition resists chloride pitting in marine, brine and desalination service.
Order 316L where welded joints stay unannealed, because its 0.035% carbon ceiling resists sensitisation. Standard 316 suits lighter welding.
Our SS 316 pipe sizes cover 1/8" NB to 10" NB in SCH 5S, 10S, 20S, 40S and 80S. Lengths of 316 SS pipes reach 24 ft.
Stainless steel 316 pipe price in India is approximately ₹300–₹550/kg and US$3.35–US$6.15/kg. Pricing tracks nickel and molybdenum against the day of enquiry, so no standing 316 stainless steel pipe price list holds for long. Ask us for current 316 stainless steel pipe prices.
ASTM A312 / ASME SA-312 governs seamless, welded and heavily cold worked austenitic pipe in TP316, with dimensions to ASME B36.19.
Both routes sit inside the same specification. We supply seamless and welded (ERW) to A312.
Standard despatch of stainless steel 316 pipes is 3 m and 6 m, with 20 ft for imperial orders. Cut lengths run to 24 ft.
Yes. Every consignment carries an EN 10204 3.1 certificate covering heat analysis, tensile results and the hydrostatic record.
Yes. As stainless steel 316 pipe suppliers, we export SS 316 pipes on FOB and CFR terms to Brazil, Turkey, Vietnam and Europe, under Star Export House registration.
